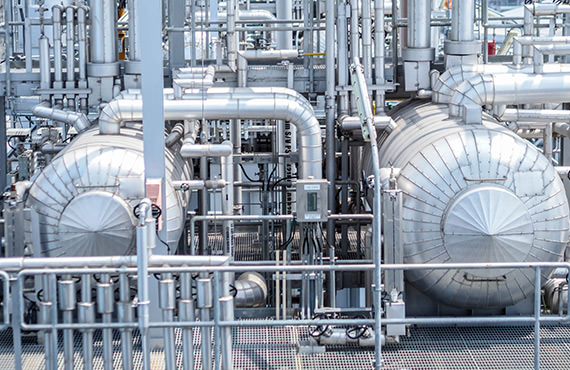

Damage to the steam drum, the boiler, and the turbine can result from inaccurate drum level control.
If the drum level falls below set-point, there is a risk of the boiler running dry. If the level is higher than set-point, there is a risk that wet steam could carry over to the turbine, causing damage to the turbine blades.
Challenges with continual boiler water level measurement include high pressure and temperatures;
Changing steam dielectric and water density as a result of pressure and temperature changes; a small control range; and a redundant level measurement requirement. Spartan Controls assists in overcoming these process challenges and helps to meet redundant measurement requirements with the Rosemount 5300 GWR with high temperature, high pressure seal and Dynamic Vapor Compensation prove paired with the Rosemount 3051S differential pressure transmitter.
Meet redundant level measurement requirements
Protect equipment from damage
Ensure accurate drum level control
