Designed for metering applications with high viscosities or high pressures, large or small capacities.
These pumps deliver accuracy, precision, and quality for agriculture, oil and gas exploration, power generation, chemical processing, and water/wastewater treatment applications. Whether for high viscosities or high pressures, large or small capacities, we can meet your unique requirements.

Neptune 500 Metering Pumps: How They Work

Play Video

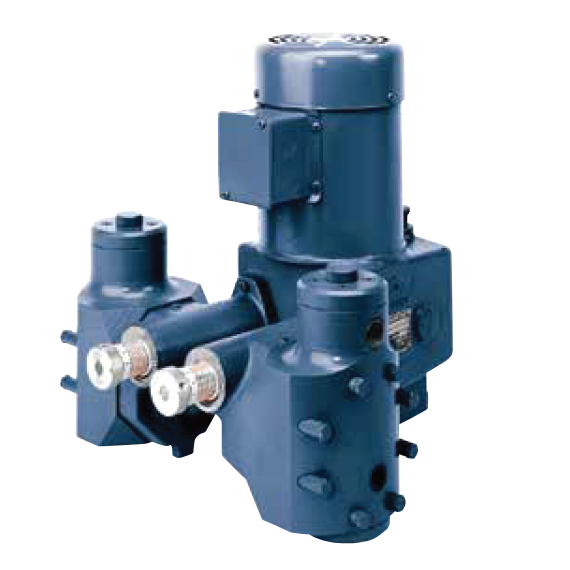

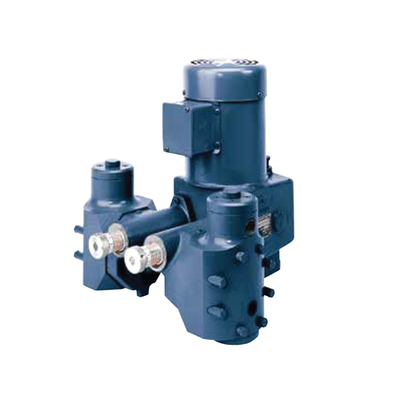

Neptune™ 500 & 600 Series Hydraulic Metering Pumps

Specs

500-A SERIES
Simplex capacities from 1 gph (3.7 L/h) to 18 gph (68 L/h), Pressures to 1,100 psi (76 bar)
500-E SERIES
Simplex capacities from 3 gph (11.4 L/h) to 29 gph (109.8 L/h), Pressures to 1,100 psi (76 bar)
500-S AND 500-D SERIES
Simplex capacities from 0.2 gph (0.75 L/h) to 94 gph (355.8 L/h), Pressures to 3,000 psi (206 bar)
500-VS SERIES
Simplex capacities from 2 gph, (7.5 L/h) to 29 gph (109.8 L/h), Pressures to 900 psi (62 bar)
5005/5003 SERIES
Simplex capacities from 0.35 gph (1.3 L/h) to 0.50 gph (1.9 L/h), Pressures to 3,000 psi (206.8 bar)
600 AND 6000 SERIES
Simplex capacities to 240 gph (907 L/h), Pressures to 4,000 psi (276 bar)

Features

  • Each pump features a variable Oil By Pass™ stroke adjustment mechanism which will allow better valve performance than variable linkage designs
  • Valve checks have extra time to seat even in heavy or viscous liquids since they are idle during the by-pass portion of the suction and discharge strokes
  • EZE-CLEAN™ valves are removable without disturbing piping (Exceptions: 500-E series and 560 series in PVC and PVDF construction)
  • 500 series pumps are available in Simplex and Duplex configurations and capacities can transfer up to 94 gallons per hour
  • 5005-S and 5003-S pumps are built to deliver very low flows that are repeatable and accurate, ranging down to quarts per day
  • 600 Series pumps are designed for high-volume, high-pressure applications
  • 6000 Series pumps are designed for low-volume, high-pressure applications
Contact our pump experts to help guide your selection process and address proper sizing and materials.
