Designed to tackle clogging challenges with enhanced passage capabilities for waste handling.
Reduces material caught on the vane tips and increases inlet pressure which keeps debris moving instead of recirculating. E-liminator groove disrupts the accumulation of fibrous debris.

EBARA Submersible Pumps for Wastewater

Play Video

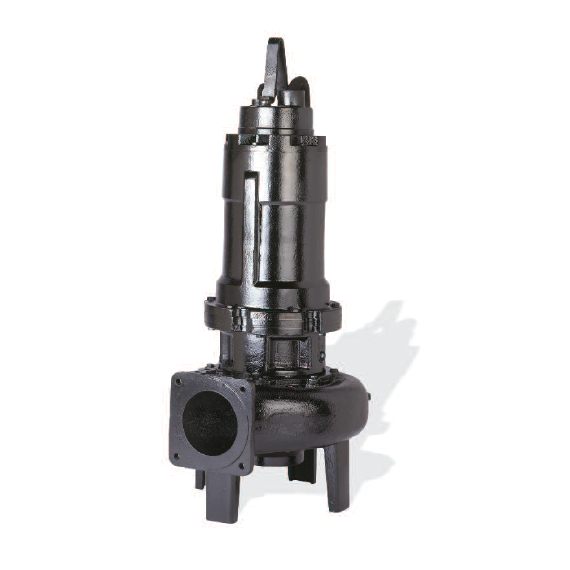

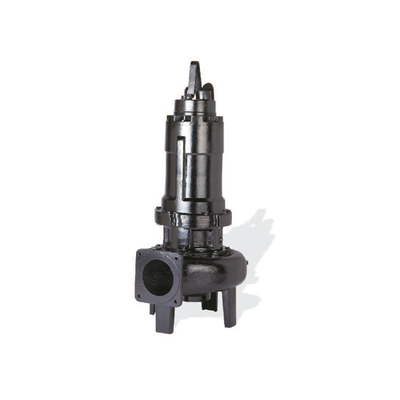

EBARA DDLFU Wastewater Sewage Pumps

Specs

Discharge size
4″×3″, 6″×4″, 8″×6″, 8″×8″, 10″×10″, 12″×12″
Range of HP
15 to 60 HP
Capacity
80 to 4000 GPM
Head
20 to 243 Ft.
Max. solid diameter
3 1/4″
Max. liquid temperature
104°F (40°C)
FM explosion proof
Available

Features

  • Heavy-Duty, High-Efficiency, Air-Filled Motor: Operates cooler with higher efficiencies, resulting in reduced operating costs
  • Watertight Cable Entry System: Protects against moisture and capillary action; reduces maintenance costs
  • Self-Cooling Jacket: Eliminates the need for external pumping devices or special heat transfer fluids; offers simplicity and high reliability by effectively dissipating heat in dry pit applications only
  • 60,000 hour single and double row thrust bearings: Long dependable operation, lowers maintenance costs
  • High-Efficiency Impellers: Ability to pass large solids with high outputs prevent clogging and handles stringy material better; impellers are optimized for hydraulic coverage lowering operating costs
  • Double Mechanical Seals: Operate in an oil bath providing longer service life and lower maintenance costs
  • Stainless Steel Shaft: High tensile strength and corrosion resistance
  • Replaceable Wear Components: Maintain working clearances while reducing casing and volute costs
Contact our pump experts to help guide your selection process and address proper sizing and materials.
