The TTD product is a solid-state fault annunciator and shut-down control system designed to protect engines, pumps, compressors and associated equipment.
The TTD model accepts 48 sensor inputs from normally open and/or normally closed sensors. Each of the 48 inputs can be configured for shutdown or alarm only. Any input can be locked out by one of the two start-run timers or configured as Class C, ESD or ignore. The annunciator provides for both closing of a fuel valve and grounding of an ignition after a time delay.

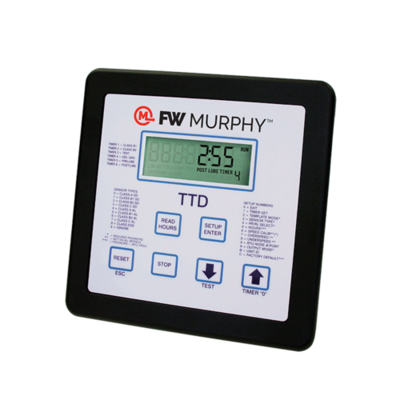

FW Murphy TTD Series
FW Murphy TTD Series

Specs

Power Requirements l PSU-2
10-32 VDC, 10 W (max); 90-400 VDC CD Ignition, 750 uA @ 100 VDC (max)
Interface
Factory configured for RS485 l field-selectable for 3-wire RS232 or RS485

Features

  • Fully-configurable fault annunciator
  • Alarm and shutdown control system for engine-driven pumps and compressors
  • Monitors 48, user-configurable, sensor inputs from N.O. and/or N.C. sensors
  • User selectable templates provide ease of retrofit by selecting configuration of existing annunciators via display keypad or download from computer with windows based MConfig™ installed.
  • Intuitive display icons to display status and assist in setup and operation result in greater ease of operation and interface
  • Serial communications port with selectable baud rates up to 38,400
  • Universal power supplies powered by 12/24VDC or CD ignition (neg. ground).
  • CSA Class I, Divisions 1 & 2, Groups B, C, and D.
