The G7/Configured package provides a G7 drive in a NEMA 12, UL Type 1, IP22 or 54 enclosure, with space for several commonly used options, such as reactors, RFI filters, circuit breakers, etc.

The G7/Configured has been designed for flexibility in providing the features and options commonly demanded by industrial control designers.

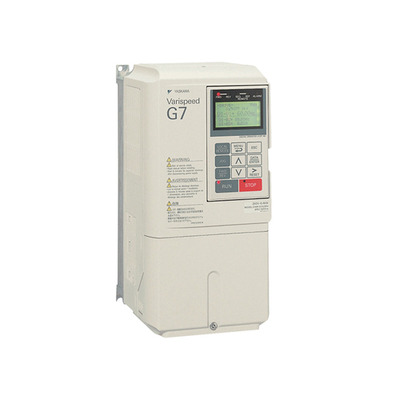

Yaskawa G7 Configured

Specs

Speed control range l 40
1 (V/f), 200:1 (open loop vector), 1000:1 (closed loop vector)

Features

  • LCD keypad display: 5 lines x 16 characters, backlit, 7 languages, copy function
  • Simple programming: Quick start and modified parameter groups
  • Microprocessor logic: 32-bit
  • Memory type: Flash memory for easy updates, custom software applications, and non-volatile program retention
  • Control logic: 24 VDC (sinking or sourcing)
  • Terminal strip: Quick disconnect
  • Front cover: Split for easy wiring
  • Heat sink fan: Plug-in with on-off control
  • Motor auto-tuning: Static and rotational
  • Speed search: Bi-directional into rotating motor
