This innovative drive utilizes 3 level control to offer the best solution for challenging installations.

Yaskawa is the only manufacturer to offer a low voltage drive with this architecture.

3 level technology minimizes drive induced problems associated with long motor cables and premature motor bearing failures.

In addition, overall electrical noise is greatly reduced, resulting in the most problem free installations. Not only does the Yaskawa G7 deliver this exclusive advantage, but it also provides high flexibility and excellent vector performance for control of speed, torque, and position, available in ratings through 500HP.

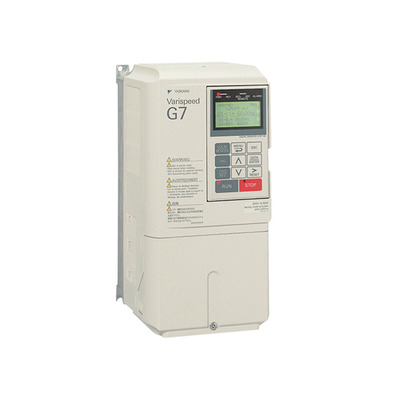

Yaskawa G7 Drive

Specs

Ratings:
0.5 to 150 HP, 240 VAC
Overload capacity
Heavy duty, 150% for 1 minute, 200% peak
Speed control range l 40
1 (V/f), 200:1 (open loop vector), 1000:1 (closed loop vector)

Features

  • LCD keypad display: 5 lines x 16 characters, backlit, 7 languages, copy function
  • Simple programming: Quick start and modified parameter groups
  • Microprocessor logic: 32-bit
  • Memory type: Flash memory for easy updates, custom software applications, and non-volatile program retention
  • Control logic: 24 VDC (sinking or sourcing)
  • Terminal strip: Quick disconnect
  • Front cover: Split for easy wiring
  • Heat sink fan: Plug-in with on-off control
  • Motor auto-tuning: Static and rotational
