The configured package provides a U1000 iQpump drive containing pump application-specific software macros, a real-time clock, and Hand/Off/Auto LCD keypad with an input disconnect switch and space for several power options inside a UL Type 3R enclosure.
The drive incorporates matrix technology to directly convert input AC voltage to output AC voltage.

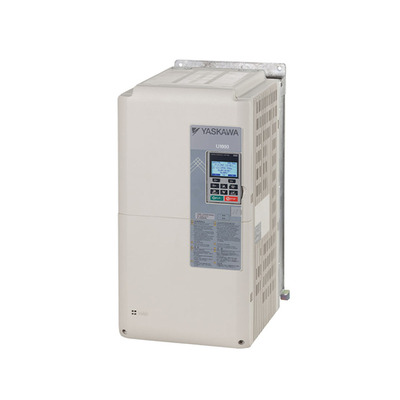

Yaskawa U1000 iQpump Configured

Specs

Enclosures
UL Type 3R
Ambient Operating Temperature
-10°C to +40°C
Global Certification
UL, RoHS
Standard I/O
Multi-Function Digital Inputs: 8

Features

  • Low input distortion across a wide load and speed range
  • IEEE-519 Compliant (<5% THD)
  • Eco-Mode to achieve near across-the-line THD
  • High Efficiency Design provides extra energy savings as compared to other low harmonic solutions
  • Near Unity True Power Factor at full load
  • 0.98 Displacement Power Factor throughout entire load and speed range
  • Integrated Input Fusing
  • Compact Design
  • High Reliability with an MTBF of 28 Years
