Yaskawa's newest addition to the pump drive family, the U1000 iQpump, incorporates matrix technology to directly convert input AC voltage to output AC voltage.
The drive is ideally suited for water pumping applications, providing extremely low harmonic distortion, energy savings and servicability in a space-saving design.

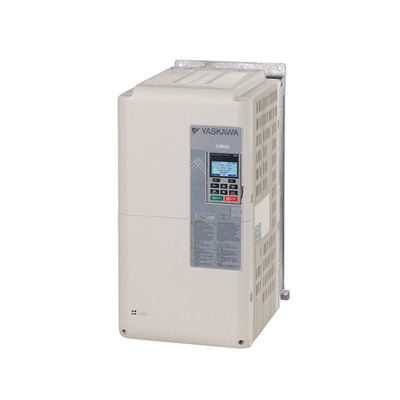

Yaskawa U1000 iQpump

Specs

Enclosures
IP00/Open Chassis : 10-100 HP 208V - 240V, 380V - 480V; 7.5 - 350HP.
Ambient Operating Temperature
IP00/Open Chassis: -10°C to +50°C (14°F to 122°F)
Global Certification
UL, CSA, CE, RoHS
Network Communications
Modbus RTU
Transducer Power Supply
24V DC, 150mA for customer use

Features

  • Low input distortion across a wide load and speed range
  • IEEE-519 Compliant (<5% THD)
  • Eco-Mode to achieve near across-the-line THD
  • High Efficiency Design provides extra energy savings as compared to other low harmonic solutions
  • Near Unity True Power Factor at full load
  • Integrated Input Fusing provides 100kA SCCR
  • Compact Design
  • High Reliability with an MTBF of 28 Years
  • Embedded Modbus RTU communications
  • Embedded real time clock for event stamping
  • High Carrier Frequency (Low Motor Noise) Capability
  • 0-400 Hz Output Frequency
  • 120% Overload for 60 Seconds
